Aston Martin V12 Vantage

Based on the hugely successful Aston Martin V8 Vantage, the V12 Vantage will feature a 6.0-litre V12 engine producing 510 bhp (380 kW / 517 PS), and 570 Nm (420 lb ft) of torque with a top speed of 190 mph (305 km/h) and 0-62 mph (0-100 kp/h) time of 4.2 seconds.

The latest incarnation of the Vantage family has been designed to provide a unique character, appealing to different driver tastes and complementing the other models in the current Aston Martin line-up.

The Aston Martin V12 Vantage has a unique character.
Designed for the focused driver, every component of the Aston Martin V12 Vantage has been honed with pure driving enjoyment in mind. Benefitting from race-developed materials and components, and featuring lightweight carbon fibre; performance and agility have been tuned to perfection.
Visually enticing, the Aston Martin V12 Vantage expresses its performance potential through its purposeful stance created by enhanced aerodynamic and cooling aids optically widening the car, while retaining traditional understated Aston Martin design. Equally inviting, the cosseting interior permits the driver to extract maximum performance ability from the car while also enjoying customary levels of Aston Martin comfort on longer journeys. High levels of power and torque are available at all engine speeds making the Aston Martin V12 Vantage responsive and tractable in any driving situation.

The Performance
The Aston Martin's most powerful engine is fused with its most agile model to produce a truly exhilarating sports car.
The V12 power plant has been intelligently packaged into the Vantage's compact form preserving its perfect proportions. While the external dimensions of the V8 Vantage remain unchanged, the internal front structure has been extensively revised forward of the suspension towers to house the larger engine, brake cooling system, and twin air intake system.
To achieve the power output, the engine features a number of enhancements over the standard 6.0-litre V12 found in the DB9. These include a 'by-pass' engine air intake port that opens up at 5500 rpm, a revised induction system and re-profiled air inlet ports that further improve airflow into the combustion chamber to improve performance.
The naturally aspirated 6.0-litre V12 hand-built engine produces 510 bhp (380 kW / 517 PS) at 6500 rpm and 570 Nm (420 lb ft) of torque giving the driver access to high levels of power and torque at all engine speeds. Unique to the Aston Martin V12 Vantage is a 'Sport' button which allows the driver to choose between two powertrain modes.
The default 'normal' provides a more progressive, throttle response, suited to more everyday situations, such as driving in urban areas, heavy traffic, or in challenging weather conditions. Selecting 'Sport' mode delivers a sharper throttle response together with a sportier exhaust note. This mode is designed for use in more dynamic driving situations where sharper responses are required, extracting the maximum performance from the car.

The Aston Martin V12 Vantage benefits from Aston Martin's class leading all-alloy VH (Vertical Horizontal) architecture: a lightweight bonded platform that provides outstanding strength, rigidity and weight benefits.
Although the V12 engine weighs 100 kg more than the standard car's engine, intelligent use of lightweight materials and components including carbon ceramic brakes, lighter forged aluminium wheels, lightweight inner rear quarter panels and optional lightweight seats have resulted in the overall kerb weight being only 50 kg heavier than its V8 sibling. The ensuing weight distribution provides for balance that is near perfect (51:49).

Exclusively available with a six-speed manual transmission, the gearbox uses a transaxle configuration to aid weight distribution. The Aston Martin V12 Vantage's final drive ratio has also been modified from 3.909:1 to 3.71:1. This allows the Vantage to take full benefit of the high torque levels delivered by the engine to provide both flexibility at lower engine speeds as well as a high top speed of 190 mph.
For a car possessing such racing pedigree, the Aston Martin V12 Vantage surprises with its day to day usability. Featuring a luggage capacity of 300 litres and a traditional tailgate, coupled with ample stowage space to the rear of the seats, touring and trips away are made easy. Gear changes are light and precise requiring minimum effort from the driver and a longer final drive ratio extracts the most from the power and torque available to improve driveability. The communicative chassis provides comfort on long journeys and thrilling feedback with energetic driving.

Near-perfect weight distribution is achieved with a transaxle-mounted gearbox which sees 85% of the car's weight lying between the front and rear axles. Aston Martin engineers have positioned the engine as far back and as low as possible in the car to contribute to the 51:49 weight distribution. Containing the weight within the Aston Martin V12 Vantage's wheelbase results in a low polar moment of inertia, creating a car which has a natural agility.
Superb handling characteristics are at the heart of the Aston Martin V12 Vantage; the rear suspension has been modified, with a more compact dual-rate spring design, in order to accommodate a wider wheel and tyre combination, improving grip and traction. The ride height of the Aston Martin V12 Vantage has also been lowered by 15 mm, while the spring rates have been stiffened by 45% and the anti-roll bars are 15% (front) and 75% (rear) stiffer than the standard car. These measures serve to lower the car's centre of gravity and reduce the amount of roll experienced during cornering, further increasing the Aston Martin V12 Vantage's dynamic capabilities.
The Aston Martin V12 Vantage's diamond-turned 19" alloy wheels are manufactured using a forging process, saving a total of 5 kg, which reduces the overall weight of the car, as well as enhancing both ride and handling characteristics.

The new 10 spoke wheels are clad with wider Pirelli P Zero Corsa tyres which have been specifically designed for the Aston Martin V12 Vantage enabling it to generate the highest cornering forces of any Aston Martin; up to a peak of 1.3g is possible.
The Aston Martin V12 Vantage comes as standard with Carbon Ceramic Matrix (CCM) brakes, providing immense stopping power. Benefitting from carbon fibre's inherent properties, CCM brakes are not only tougher than conventional cast iron discs but also dissipate heat more rapidly resulting in less fade during sustained dynamic driving.
Air ducts positioned within the lower front grille feed air directly onto the discs to aid cooling and optimise braking performance.
The Aston Martin V12 Vantage's CCM discs are 398 mm in diameter at the front and 360 mm at the rear while the brake callipers feature six pistons at the front, four at the rear and have a larger brake pad area compared to the V8 Vantage. The CCM brakes are some 12.5 kg lighter than conventional brakes reducing not only the overall weight of the car but also the unsprung mass specifically. This benefits ride and handling and lower rotational mass helps improve acceleration.
In line with the character of the Aston Martin V12 Vantage, a revised Dynamic Stability Control (DSC) system permits the driver, through three modes of operation, to manage how the system intervenes during more challenging driving situations.
In default operation, the DSC is automatically switched on. Depressing the DSC button for two seconds selects 'track mode' which raises the manner and threshold at which the system intervenes allowing the driver to explore the limits of the car's considerable handling capabilities. Depressing the button for four seconds will switch off DSC completely.

The design
Based on the stunning V8 Vantage originally launched in 2005, the Aston Martin V12 Vantage subtly hints at its sporting intent with its controlled aggression and lower, purposeful stance. It is manufactured at Aston Martin's global headquarters in Gaydon, Warwickshire where all Aston Martins benefit from class leading levels of craftsmanship fused with cutting-edge technology.
Avoiding purely cosmetic changes, each modified panel on the Aston Martin V12 Vantage has been altered to enhance the vehicle's dynamics. Knowledge gained from the N24 race car programme has led to body revisions designed to improve downforce while not increasing the drag coefficient of the car. Each form follows its functional requirements, while also contributing to stunning design - a revised front splitter channels cooling air to the brakes and to the radiator while also producing increased down force. Bonnet louvres remove heat from the engine bay and help increase front-end down force by limiting the built up air pressure under the bonnet. New side sills derived from the N24 race car channel air towards the rear of the car rather than under it, reducing rear-end lift. A more pronounced boot 'flip' and the new rear carbon fibre diffuser work in harmony with a redesigned rear under floor to channel air through the new high-capacity oil cooler and maintain an area of low pressure under the rear of the car producing increased down force and aiding grip.
Complementing the taught exterior, the Aston Martin V12 Vantage's interior hints at the car's dynamic capabilities. The optional carbon fibre and Kevlar composite seats cosset the driver providing support during spirited driving while remaining comfortable on long journeys. Saving 17 kg per car, the seats which are manufactured by a supplier to the motorsport and aviation industries are hand-trimmed by craftsmen at the Gaydon production facility.

The interior of the Aston Martin V12 Vantage provides the ideal environment for the focused driver to extract the very best from every element of the car. The extensive use of high quality materials with exceptional attention to detail placed throughout the cabin results in an unparalleled level of finish. The instrument cluster has been revised with even clearer dials to allow the driver to completely focus on the information being relayed from the car. The door pulls are made from beautifully-prepared carbon fibre where even the carbon weave has been meticulously aligned - a sign of exceptional craftsmanship. Additional light weight materials in the form of Alcantara are used to save valuable weight throughout the cabin. The unique ambience of the Aston Martin V12 Vantage interior beautifully marries the functional requirements of a driver-focussed sports car with the comfort of an everyday practical car.

Aston Martin V8 Vantage Roadster, 2009

Aston Martin V8 Vantage - originally launched to widespread critical acclaim at the Geneva Motor Show in 2005 - is to receive significant technical enhancements, reaffirming the car's position as one of the world's most desirable and exhilarating sports cars.

While the universally distinctive and award-winning shape of the Aston Martin V8 Vantage is retained, the car benefits from a number of technical changes which include significantly up-rated engine performance from a new 4.7 litre power unit in both Coupe and Roadster variants. Other changes include revised dynamics to take full advantage of increased power and torque availability, improved Sportshift™ transmission software and a new sports suspension option.

The 4.7 litre V8 engine has a power output of 420bhp (an 11% increase on the previous 4.3 litre unit) and delivers peak torque of 470Nm (15% increase), providing the Aston Martin V8 Vantage with new reserves of mid-range performance, an improved 0-60mph time of 4.7 seconds and top speed of 180mph (288kph). Combined European fuel economy and CO2 emissions are also improved by 13% (Sportshift™).

Inside, the changes include a new centre console and revised switchgear and the introduction of an ECU replacing the previous V8 Vantage key. Externally, the acclaimed Aston Martin V8 Vantage design appearance is enhanced with a range of new standard and optional 19'' alloy wheels.

Engine
Improvements in performance have been achieved through a number of carefully developed changes to Aston Martin's acclaimed V8 engine.

The cylinder bore and stroke has been increased from 89mm to 91mm and 86mm to 91mm respectively, giving a total displacement of 4735cc.

The increase in cylinder bore is facilitated by a move to cylinder liners that are pressed into the pre-machined aluminium alloy block, allowing a thinner liner than was possible with the cast-in design of the 4.3 litre engine.

The new forged steel crankshaft provides the 91mm stroke and incorporates new holes in the counter weights for reduced rotating mass and improved inter-bay breathing. New forged steel con-rods and cast aluminium pistons complete the capacity-related changes.

Other key changes include efficiency improvements to the dry sump lubrication system, including a new sump casting with oil pick-up points moved from the front and rear to the sides of the sump. The cylinder heads are modified with a new intake port and an inlet valve size increase from 34.9mm to 35.9mm. The intake manifold has been modified to match the new port to optimise air flow.

Transmission
The Aston Martin V8 Vantage transmissions have also undergone changes to improve performance and to handle the increased levels of power and torque. Both the standard manual stick-shift gearbox and the optional Sportshift transmission benefit from a modified clutch and flywheel, reducing clutch pedal efforts and delivering a 0.5kg weight saving, reducing the rotating masses within the powertrain, and hence increasing engine responsiveness.

Aston Martin's Sportshift transmission has undergone a series of specific changes to broaden the capabilities of the gearbox to offer customers enhanced comfort and convenience with sporting capabilities. Changes include a revised control strategy, allowing the transmission, rather than the engine, to dictate how best the engine torque should be deployed to optimise performance and deliver power smoothly and consistently.

'Dual Throttle Map' software is also featured. When 'Comfort' mode is selected the engine reacts in a smoother more progressive manner to driver throttle inputs and in the default 'Sports' mode the throttle mapping is more aggressive, delivering a more dynamic and sporting feel.

Sportshift now also has the capability to take inputs from the steering wheel enabling the current gear to be held when the car is negotiating a corner and hill descent detection, allowing a low gear to be held, maximising the effects of engine braking.

Suspension
A series of improvements are introduced to the Aston Martin V8 Vantage chassis and suspension setup to deliver improved body control and low speed ride quality; enabling the driver to take full advantage of the increased performance potential.

A number of the improved components originally introduced on the Aston Martin V8 Vantage Roadster are now carried over to the Coupe, including revised upper damper mountings and bump stops. Additionally, the front spring rates are stiffened by 11% at the front and 5% at the rear.

Steering geometry is also modified to improve steering feel, while the front lower suspension arm compliance bushes are stiffened by 22% to provide enhanced steering response and handling.

The Aston Martin V8 Vantage also now benefits from Bilstein dampers as standard; these low-friction dampers provide improved levels of dynamic capabilities and further improve ride quality.

Design & Optional Equipment
Introduced as an option for both Coupe and Roadster variants is a new Sports Pack which comprises forged lightweight alloy wheels aiding a lower unsprung mass, re-tuned Bilstein dampers with improved dynamic response, up-rated springs and a revised rear anti-roll bar (Coupe only). The Sports Pack is intended to offer greater agility, high speed body control and precision feel for the most enthusiastic of drivers.

Though the award-winning exterior design of the Aston Martin V8 Vantage remains largely unchanged, a new 20-spoke 19'' alloy wheel is introduced as standard, with either diamond turned silver or graphite finishes available as options, affording customers maximum choice. Alternatively, as part of the Sports Pack option, a 5-spoke lightweight aluminium wheel will be provided.

In the cabin, a new centre console constructed from die cast zinc alloy with a graphite silver finish is introduced along with a new ECU - first seen on the Aston Martin DBS in 2007. The ECU - constructed from glass, polished stainless steel and polycarbonate - replaces the key used previously for the Aston Martin V8 Vantage. The revised car also includes a new Hard Disk Drive (HDD) Navigation System offering faster route processing, additional features and improved graphics. Full ipod/MP3 integration is retained as standard equipment.

First shown as a concept car at the 2003 North American International Auto Show in Detroit, the Aston Martin AMV8 Concept caused a worldwide sensation as it allowed Aston Martin to enter a new sector of the premium sports car market with a genuine alternative to other cars on offer. Deliveries of the Aston Martin V8 Vantage Coupe to customers began in late 2005, joined by a convertible sibling in 2007 when the Aston Martin V8 Vantage Roadster was launched. The car is hand built at Aston Martin's Headquarters at Gaydon, Warwickshire, UK and to date more than 10,000 have been delivered to customers around the world.

Performance
* Max speed: 180mph (290 km/h)
* Acceleration: 0-60mph 4.7 seconds
* 0-100km/h (62mph) 4.8 seconds
* Max power: 313kW (420bhp) @ 7000 rpm
* Max torque: 470 Nm (346 lb.ft) @ 5750 rpm

Aston Martin One-77

The One-77 is Aston Martin's definitive sports car, one that epitomises everything Aston Martin from technology, the hand-craftsmanship of the hand rolled aluminium panels to the attention to detail. A culmination of all the marque's know-how, the Aston Martin One-77 delivers effortless beauty guaranteed to stir the senses with performance potential eclipsing any previous Aston Martin.

With the performance and durability phase of the Aston Martin One-77's intensive development programme soon to commence, the 79th Geneva Auto Salon provides the perfect stage on which to reveal the remarkable engineering, advanced technology and exotic materials that lie beneath the Aston Martin One-77's extraordinary exterior.

Consequently the Aston Martin One-77's structural core is a lightweight and immensely rigid carbon fibre monocoque. Conceived and designed at Aston Martin's Gaydon HQ, the monocoque, or 'tub', has been built in partnership with Multimatic (MTC). As world leaders in carbon composite technology, advanced vehicle analysis and dynamic simulation, MTC brings unrivalled specialist capabilities to the exacting challenge of the Aston Martin One-77 programme.

Employing the classic formula of double wishbones at each corner, the Aston Martin One-77 features inboard suspension front and rear, with pushrods employed to transfer vertical suspension movements to the horizontally mounted spring/damper units. A practice taken directly from racing car design, the main advantages of inboard suspension are a reduction in unsprung weight and the ability to package the suspension components more effectively.

The dampers are fully adjustable and feature advanced Dynamic Suspension Spool Valve (DSSV) technology; a world-first for a road car application. These special valves are state-of-the-art even at the highest levels of motorsport, and use high-precision machined components to enable the shock-absorbing characteristics of the damper to be changed without having to remove them from the car, as is the norm.

Underlining the truly bespoke nature of the Aston Martin One-77, once delivered to its owner, the car's suspension characteristics will be precisely set-up by Aston Martin engineers to suit their exact requirements, from settings suitable for the ultimate long-distance GT, to a machine capable of conquering the Nürburgring Nordschleife.

While functionality and efficiency are paramount in the design and construction of the Aston Martin One-77, so too is aesthetic beauty. To this end every single component has been crafted from the finest materials with absolute attention to detail. From the mesmerising weave of the glossy carbon fibre tub and the abstract, sculptural beauty of the dry sump's oil reservoir, to the unerring precision of the billet machined aluminium suspension mounts, the Aston Martin One-77's rolling chassis is an automotive masterpiece.

Naturally, such a spectacular chassis demands - and gets - an equally exceptional drivetrain. It comes in the form of an immensely potent 7.3-litre, naturally aspirated V12 engine. Thanks to the adoption of a dry-sump oil system the engine is mounted 100mm lower than in any previous V12-engined Aston Martin road car, which helps keep the Aston Martin One-77's centre-of-gravity as low as possible. To further aid agility and endow the Aston Martin One-77 with progressive handling and stable, predictable on-limit behaviour, the engine is also mounted 257mm aft relative to the front wheel centreline. In so doing the front-mid-engined layout shared by all of Aston Martin's current road car range has been taken to a new level.

The Aston Martin One-77's magnificent power unit is an extreme evolution of the 6.0-litre V12 engines fitted to the Aston Martin DBS, DB9 and new V12 Vantage models. Like the collaboration with MTC for the build of the chassis, Aston Martin has chosen a world-leading partner with which to develop the motor: legendary engine builders, Cosworth. It has proved to be the perfect collaboration, as Chris Porritt explains.

Wearing Pirelli P Zero Corsa tyres (255/35 ZR20 front, 335/30 ZR20 rear) developed specifically for the Aston Martin One-77, all 700+bhp is transmitted to the road through the rear wheels via a new six-speed gearbox. Controlled via column-mounted paddles behind the steering wheel, this robotised sequential manual is a new generation of Aston Martin's familiar transmission. Though it is made specifically for the Aston Martin One-77 and features specially strengthened internals to cope with the tremendous power and torque, the lessons learned in its development will ultimately find their way into the company's series production models.

It's a mark of the inherent capabilities of Aston Martin's acclaimed lightweight Carbon Ceramic Matrix brake technology that it has been used as the basis for the Aston Martin One-77's braking system. The internals of the callipers have been re-engineered to transmit less heat from the brake pads into the brake fluid, while the discs themselves have been developed to ensure the maximum possible contact area between the face of the disc and the brake pads for improved stopping power. The Aston Martin One-77's increased performance, special attention has also been paid to brake cooling, as the brakes have less time to cool between bursts of acceleration.

Top speed is confidently predicted to be in excess of 200mph, with a 0-60mph time in approximately 3.5sec.

Aston Martin DB9 LM, 2008

Aston Martin is not only showing the DBS for the first time in Europe at the Frankfurt motor show but showcase two new special editions - the Aston Martin DB9 LM and the Aston Martin V8 Vantage N400. Both special editions draw inspiration from the company's recent achievements at Le Mans and the N?rburgring 24-hour races.

The Aston Martin DB9 LM celebrates Aston Martin's GT1 class victory in the Le Mans 24-hour endurance classic in June with the Aston Martin DBR9 - a race car derived from the Aston Martin DB9.

This special edition car, available in Coupe form only with Touchtronic transmission, includes a unique Sarthe Silver exterior paint finish, meshes and rear crossbar finished in Magnum Silver and red brake calipers. Inside, the Aston Martin DB9 LM is fitted with handcrafted black leather finish, perforated leather inserts, unique 'Tertre Rouge' facia trim and numbered sill plaque. The car is also equipped with the normally optional DB9 Sports Pack as standard, with colour keyed and diamond turned alloy wheels.

Aston Martin DBS, 2008

Aston Martin unveiled the most eagerly anticipated car of the year the new Aston Martin DBS at the Pebble Beach Concours d'Elegance on August 16th 2007, where the company took a starring role as the featured marque.

Equally at home on a twisting mountain circuit as on the open road, the DBS is a true thoroughbred. The Aston Martin DBS is a 6.0-litre V12 powered, race-bred, two-seater shaped by the aerodynamic demands of high performance, with an exquisite interior that marries beautifully hand-finished materials with the very latest in performance technology.

Performance
The need for high-performance stability, handling ability and low kerb weight defined the DBS's form and construction. Accordingly, the Aston Martin DBS becomes the first production Aston Martin to make extensive use of ultra-light carbon-fibre body panels. High levels of performance and control are delivered by the combination of inherent light weight, near-perfect weight distribution, a supremely powerful and flexible V12 engine, and a performance-honed six-speed transmission, together with new carbon ceramic brakes and an adaptive damper controlled suspension system.

At the heart of the Aston Martin DBS is a 6.0-litre V12 engine. The DBR9 and DBRS9 race cars are powered by an enhanced version of this same V12, tuned to produce in excess of 600bhp. The shared powerplant continues the strong link between Aston Martin's road and race cars, just as the six-cylinder engine used in the DBR1 also powered the Aston Martin DB4, DB5 and DB6 in the 1950s and 60s.

As with all current Aston Martins, the engine is hand-assembled at Aston Martin's dedicated engine facility in Cologne, Germany. The classic 6.0-litre V12 features a number of power-increasing enhancements. These include a 'by-pass' engine air intake port that opens above 5500rpm to allow more air into the engine, and re-profiled air inlet ports that further improve airflow into the combustion chamber. Combined with a compression ratio of 10.9:1, the result of these enhancements is prodigious power and torque: the Aston Martin DBS delivers 380 kW (510 bhp/517 PS) at 6500 rpm. The 3.71:1 final-drive ratio ensures that the additional power is usable, enhancing in-gear acceleration in particular.

A lightweight, rigid structure is the design engineer's ultimate goal, and achieving the right balance between strength and mass is crucial. Like the DB9 and its sibling DBR9 and DBRS9 race cars, the DBS uses Aston Martin's class-leading all-alloy VH (Vertical Horizontal) architecture, a lightweight bonded aluminium structure that provides outstanding strength and rigidity. Aston Martin's engineers have also employed advanced materials and processes to further reduce weight and increase the Aston Martin DBS's performance and dynamics.

Carbon-fibre panels are used for the boot enclosure, boot lid, door opening surrounds, front wings and bonnet, giving a saving of some 30kg over more conventional materials without any reduction in strength. "There are no restrictions on form or shape in using carbon-fibre," says Marek Reichman, Aston Martin's Design Director, "and the material allowed us to wrap bodywork around the 20" wheels and maintain the precise relationship between the wheel and the bodywork."

Each panel has been carefully sculpted to direct the airflow around the car, into the engine and to help cool the braking system. The carbon-fibre elements are produced using advanced manufacturing techniques developed from the aerospace and motorsport industries.

Control
As with the DB9 and DBR race cars, the Aston Martin DBS benefits from the inherent characteristics of the VH architecture. The VH underframe consists of pressed, extruded and cast aluminium components, bonded together to create an immensely strong underlying structure.

Design
The Aston Martin DBS is manufactured using the finest materials, with a combination of hand-finishing and pioneering high-technology processes. From the exceptional quality of the design and finish to the advanced production techniques employed to save weight and create strength, the DBS is both a technological masterpiece and a powerful visual and tactile experience, inside and out.

The Aston Martin DBS is the culmination of the DB bloodline, a synthesis of race-bred technology and road-going practicality that can be traced back to the iconic Aston Martin DB2, DB3S and DB4 GT, and is continued today with the DBR9 and DBRS9 race cars. The DBS's powerful, flowing form fuses the visual language of the DBR9 GT1 race car with the innate elegance of the DB series. Lower and tauter than other Aston Martin production models, the DBS has subtly flared wheel arches accommodating standard 20" diameter wheels and tyres. These provide excellent stability and grip, while giving the car a muscular and athletic stance that evokes the DBR9 and DBRS9. The design process involved continuous revision and honing of the Aston Martin DBS's surfaces, ensuring that the shapes and forms represent perfectly the car's inherent power, while never diluting the fundamental proportions that are the essence of every Aston Martin.

The external detailing reflects the power and dynamic abilities of the Aston Martin DBS, with revised inlets and enlarged grilles that deliver more air into the engine and increase its cooling capacity. Subtle design details include a new five-bar design for the polished alloy main grille, as well as two additional vents in the enlarged power bulge on the carbon-fibre bonnet. These vents are entirely functional, improving engine performance and efficiency, yet also communicating the increased power output of the uprated V12 engine.

The widened front and rear track improve handling and give the car a more muscular character. To accommodate this additional width, the surfaces of the wings have been sculpted and re-shaped with harder lines, which also serve to emphasise the car's strength and power. The lowered ride height is accentuated by the enhanced side sills, carefully profiled to improve aerodynamic performance and reduce drag along the flanks. The iconic Aston Martin side strake, a design feature of every DB car since the DB4, has been redesigned for the DBS, incorporating a side repeater formed by a bank of LEDs.

The interior of the Aston Martin DBS represents the epitome of Aston Martin's commitment to using materials honestly, without disguise or embellishment. Lightweight materials are used throughout to save weight; door pulls are made from carbon-fibre, for example, and the carpet has been woven with lighter fibres to save valuable kilograms. Special semi-aniline leather is used throughout the cabin, saving weight as well as giving a soft feel and distinctive aroma.

The DBS features unique primary controls, including a new steering wheel profile with a twin-stitched detail marker that indicates the 'on-centre' position. The gear knob is fashioned from polished alloy to echo the metallic finishes on the new centre console. The instrument cluster is designed with white numerals on a dark graphite background for excellent legibility. The twin-stitch pattern runs through the interior as a signature device; the alignment of both stitch lines is testament to Aston Martin's ongoing tradition of exceptional craftsmanship.

Aston Martin DBS Specification

Body
* Two-door coupe body style with 2+0 seating
* Bonded aluminium VH structure
* Aluminium, magnesium alloy and carbon-fibre composite body
* Extruded aluminium door side-impact beams
* High Intensity Discharge (HID) headlamps (main beam)
* LED rear lamps and side repeaters

Engine
* All-alloy, quad overhead camshaft, 48-valve, 5935cc V12.
* Compression ratio 10.9:1
* Front-mid mounted engine, rear-wheel drive
* Fully catalysed stainless steel exhaust system with active bypass valves
* Max power: 380kW (510bhp/517 PS) at 6500rpm
* Max torque: 570Nm (420 lb.ft) at 5750rpm
* Acceleration: 0-100 km/h (0-62mph) in 4.3 seconds
* Max speed: 302 km/h (191mph)

Transmission
* Rear-mid mounted, six-speed manual gearbox
* Alloy torque tube with carbon fibre propeller shaft
* Limited-slip differential
* Final-drive ratio 3.71:1

Wheels and Tyres
* Front: 8.5'' x 20'' Pirelli P Zero 245/35
* Rear: 11'' x 20'' Pirelli P Zero 295/30

Steering
* Rack and pinion, Servotronic speed-sensitive power-assisted steering, 3.0 turns lock-to-lock. Column tilt and reach adjustment

Suspension
* Front: Independent double wishbone incorporating anti-dive geometry, coil springs, anti-roll bare and monotube adaptive dampers
* Rear: Independent double wishbones with anti-squat and anti-lift geometry, coil springs, anti-roll bar and monotube adaptive dampers
* Adaptive Damping System (ADS) with Track mode

Brakes
* Front: Ventilated carbon ceramic discs, 398mm diameter with six-piston calipers
* Rear: Ventilated carbon ceramic discs, 360mm diameter with four-piston calipers
* Dynamic Stability Control (DSC) with Track mode
* Anti-lock Braking System (ABS)
* Electronic Brakeforce Distribution (EBD)
* Emergency Brake Assist (EBA)
* Traction control

Dimensions
* Length: 4721mm (185.9'')
* Wheelbase: 2740mm (107.9'')
* Width: 1905mm (75'') (exc. Mirrors) 2060mm (81.1'') (inc. Mirrors)
* Fuel tank capacity: 78 litres (17.2 Imp.galls, 20.5 US galls)
* Height: 1280mm (50.4'') Weight: 1695kg (3737lb)

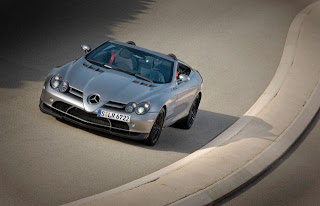

Mercedes-Benz SLR McLaren Roadster 722 S

Mercedes-Benz SLS AMG

Brabus B63 S

The E63 AMG: With Brabus B63 S engine tuning, power output of both sedan and wagon jumps to 555 hp (547 bhp) / 408 kW and their top speed jumps to 320 km/h (200 mph). Brabus also offers exclusive accessories such as sporty yet elegant aerodynamic-enhancement components, custom-tailored tire/wheel combinations up to 20 inches in diameter and custom interior options.

The fast-revving 6.3-liter V8 becomes even more powerful with the Brabus B63 S performance kit. The conversion consists of two sport air filters, free-flow metal catalysts and newly programmed engine electronics. The tuning kit bumps power output of the engine from standard 525 hp (517 bhp) / 386 kW by 30 hp (30 bhp) / 22 kW. Simultaneously peak torque grows from 630 to 650 Nm (464 to 479 lb-ft) at 5,400 rpm. Brabus recommends fully synthetic Aral high-performance motor oil.

Equipped with the Brabus B63 S kit, the sprint time from rest to 100 km/h (62 mph) is shortened to 4.3 seconds and in combination with the Brabus V/max unit top speed jumps to up to 320 km/h (200 mph), depending on the speed rating of the selected tire/wheel combination.

To transfer the increased power to the road with as little slip as possible Brabus offers a limited-slip differential with a locking rate of 40 percent for the E63 AMG.

Minimizing aerodynamic lift is essential in a car as fast as this one. The Brabus designers went into the wind tunnel to develop aerodynamic-enhancement components that are as stunning as they are effective. These components are manufactured from clear-coated carbon fiber. The production front apron of sedan and wagon can be upgraded with a spoiler lip. The aerodynamics of the sedan's rear can be further improved with a diffuser and a rear spoiler.

On the front axle Brabus aluminum sport fenders with lateral air outlets improve venting of the wheel houses and add a decidedly sporty note to the car's appearance.

The exclusive Brabus-refined interiors are also available for the Mercedes E63 AMG.
The list of accessories ranges from stainless-steel scuff plates with illuminated Brabus logo to a speedometer with 360-km/h (225-mph) dial. The company upholstery shop creates luxury interiors from a combination of especially soft yet durable Brabus Mastik leather and Alcantara to each customer's exact specifications. The perfect complements are precious-wood and carbon-fiber inlays in any desired color and with various surface finishes.

Mercedes-Benz SLR Stirling Moss

With the SLR Stirling Moss Mercedes-Benz and McLaren are adding the crowning glory to the model family of their highly successful SLR super sports car with a new, uncompromisingly spectacular car. There is neither a roof nor a windscreen to separate the driver and passenger from the outside world; they enjoy unadulterated high-speed excitement with all the attributes of a speedster.

The new Mercedes-Benz SLR Stirling Moss is also characterised by the most sophisticated technology and a breathtaking design which reinterprets the SLR legend. With 478 kW/650 hp the SLR Stirling Moss accelerates its V8 supercharged engine from standstill to 100 km/h in less than 3.5 seconds, and has a top speed of 350 km/h - no other series-production car is at the same time so open and so fast. This extreme concept makes the new high-performance sports car a legitimate bearer of the name of the British motor racing legend and Mille Miglia record-holder Stirling Moss, who drove the legendary Mercedes-Benz SLR racing cars from victory to victory during the 1950s.

Three letters are all it takes to make car fans' hearts beat faster: SLR. In the 1950s the Mercedes-Benz SLR 300 celebrated victory after victory. It won the Mille Miglia and the Targa Florio as well as the Tourist Trophy. It was driven by the stars of the time: Juan Manual Fangio and Karl Kling - and, first and foremost, by the British racing driver Stirling Moss. At ten hours, seven minutes and 48 seconds he still holds the Mille Miglia record.

This is why the modern-day version of the legendary SLR carries the additional words "Stirling Moss" in its name. As the new Mercedes-Benz SLR Stirling Moss unites the character of the current SLR models with the fascination of the SLR of 1955. The core values of both the historical and the present-day SLR models include an exciting new design, innovative technology, high-class materials displaying perfect craftsmanship, and, above all: a unique driving experience for all the senses.
Whilst the 300 SLR earned its spurs on racing circuits the world over, the new member of the SLR family is not designed for the racetrack. Although it sets new standards in terms of technology, performance and excitement - just like its forebears - it is aimed at individuals who have exquisite requirements and nurture very special dreams.

Highly puristic concept without a roof or a windscreen
Remaining totally true to the specifications of the 300 SLR, the new Silver Arrow's equipment is extremely sophisticated and yet at the same time decidedly spartan, doing without both a roof and side windows. There are just two wind deflectors a couple of centimetres in height to protect the driver and passenger from the airflow. Two air scoops integrated into the bodywork serve as roll-over bars. With this extreme concept the new Mercedes-Benz SLR Stirling Moss is visually very different from all the other vehicles which belong to the elite sports car class.

Just like the legendary racing vehicles of yesteryear, the SLR Stirling Moss dazzles with its superlative performance. Accelerating from zero to 100 km/h in less than 3.5 seconds and with a top speed of 350 km/h this puristic high-performance sports car denotes completely new dimensions in open-top driving. And not just because of the impressive performance figures; every time drivers take to the wheel of the Mercedes-Benz SLR Stirling Moss their senses are addressed with a previously unheard of intensity, conveying a driving experience in its purest and most sensual form. This automotive thoroughbred thus facilitates the kind of open-air feeling that is utterly unique for a road-going vehicle.
Exciting design reminiscent of the SLR racing cars
The Mercedes-Benz SLR Stirling Moss, its entire bodywork made of fine lightweight carbon fibre, represents a stand-alone design concept. Whilst the Mercedes-Benz designers were working on the body of the new SLR Stirling Moss, they were fully aware every single moment that they were creating a vehicle with a top speed of 350 km/h. At the same time this supreme athlete is highly reminiscent of the SLR racing cars from the 1950s, whose design idiom still never fails to impress to this day.

The Mercedes-Benz SLR Stirling Moss sports an exciting, pronounced arrow-shaped form and is characterised by an elongated bonnet and a compact, muscular rear. As there is no windscreen, the exterior and interior flow smoothly into one. The bonnet also stretches from its striking tip right down into the interior, giving the vehicle body a distinctly sleek air. Even when standing still, the sports car radiates such dynamism that the observer immediately falls under its spell.
Further eye-catching features include two air scoops behind the driver and passenger. They carry additional roll-over bars, also uniting the traditional and the modern. The wings are powerfully contoured. Black-painted ventilation "gills" sitting facet-like on the sides and on the bonnet also cite the legend. A thrilling interplay of light and shadow ensues through the expressive lines, underlining the dynamic overall impression.

Exactly as they were on the shining historical example, the side skirts on the new Mercedes-Benz SLR Stirling Moss are also very high. This prompted the designers' decision in favour of folding swing-wing doors which open forwards.
The vehicle can be closed by two tonneau covers which are carried in the boot. When both tonneau covers and the doors are closed the Mercedes-Benz SLR Stirling Moss resembles a sculpture.
In keeping with the puristic exterior of the vehicle, the interior is also reduced to the bare essentials. Surfaces penetrating each other in the instrument panel and doors make for an exciting atmosphere and resonate perfectionism. A mixture of high-class authentic materials such as carbon fibre, aluminium and fine-quality leather sets the style here. An aluminium plate carries the engraved signature of Stirling Moss and covers the area around the shift lever.

Innovative technology and polished aerodynamic concept
Developers working on the Stirling Moss were able to fall back on a wealth of experience gathered when producing the SLR Coupé and Roadster, in particular where the technical base was concerned, with its extravagant carbon-fibre design, high-performance suspension and throaty V8 engine. The common denominator uniting the Stirling Moss with the other members of the SLR family is the aerodynamic concept with a closed underbody and a diffuser in the rear bumper for maximum possible downforce at the rear axle - with one difference: the diffuser here is considerably larger than that on the coupé and roadster.
Thanks to the high-precision work carried out in the wind tunnel, the Mercedes-Benz SLR Stirling Moss always generates sufficient downforce for extremely safe handling. But the driver can also manually operate the AirBrake in order to increase the contact pressure further, during particularly sporty driving, for example. The AirBrake is also raised during powerful braking at speeds above 120 km/h, so as to stabilise the vehicle even more in such situations, thus facilitating maximum possible deceleration.

Limited to 75 units - the SLR models' crowning glory
The new Mercedes-Benz SLR Stirling Moss is the kind of high-calibre speedster coveted by the sporting gentry and enthusiasts alike. At the same time it is a collector's item which marks the pinnacle of an era and, for the foreseeable future, at least, the final curtain for the SLR. In May 2009 production of the SLR models will cease; only a total of 75 units of the Stirling Moss will be manufactured between June and December 2009, bearing chassis numbers from 1 to 75. Not only does this exclusive vehicle represent the conclusion of the current SLR family; it also serves as a very special thank you to the most loyal of SLR customers, for they are the only ones able to acquire a Stirling Moss.

Mercedes ML63 AMG Performance Studio, 2009

The Mercedes-Benz ML63 AMG Performance Studio, the AMG Performance Studio, opened in 2006. The very special M-Class features a combination of uniquely detailed fittings typical of the vehicles designed in the AMG Performance Studio.

Matching its "metallic Peridot brown" exterior paintwork, the Mercedes-Benz ML63 AMG Performance Studio features 21" high-sheen AMG light alloy wheels with a double spoke design, painted the same colour as the car. Wide-base 295/35 R 21 tyres ensure the necessary road surface contact. The high-gloss chrome trim on the upper body edges at window level is another eye-catching detail.

The extraordinary character of this unique M-Class vehicle is just as evident in the interior. The full nappa leather upholstery with a "porcelain" coloured diamond design creates an ambience of luxury. It covers the AMG sports seats, the rear seats and the door linings. The AMG emblem embossed on the front headrests points to the vehicle's exclusive origin, manufactured in the AMG Performance Studio in Affalterbach. The lower part of the dashboard, the front and back centre consoles and the backs of the front seats are all clad in glossy, porcelain-coloured nappa leather. A clear contrast is formed by the black cording, as well as the upper part of the dashboard and the door linings clad in black nappa leather. The entire roof lining, including the grab handles, sun visors and rear window frame, is lined with charcoal alcantara. The AMG sports steering wheel is black with porcelain-coloured cording.

Access strips with white luminous AMG lettering, AMG wood trim in high-gloss black piano lacquer and black AMG floor mats with porcelain-coloured nappa leather edging add further highlights to the exquisitely designed interior of the Mercedes-Benz ML63 AMG Performance Studio.

Both the Mercedes-Benz ML63 AMG Performance Studio and the Mercedes-Benz ML63 AMG 10th Anniversary demonstrate the wide range of possibilities which the AMG Performance Studio draws from to fulfil the most individual wishes of its customers. Customised modifications, e.g. to AMG sports suspensions, AMG high-performance brake systems, AMG wheel/tyre combinations, locking differentials, or individual interior fittings are carried out by the highly qualified experts at Affalterbach. In the design and construction, they draw on decades of experience in making high-performance cars, as well as comprehensive expertise from the world of motor sports.
